Precision Non-Contact Level & Distance Measurement, Ready to Ship from CDI
When your process depends on fast, repeatable measurements using non-touch sensing, the ML Series ultrasonic micromeasurement platform from TE Connectivity is a smart fit. Component Distributors Inc. (CDI) is highlighting two key items that help you deploy the system quickly: the 11011239-00 ML-01 Electronics Module and the CBL-Q1A0S2-10 quick-disconnect cable.

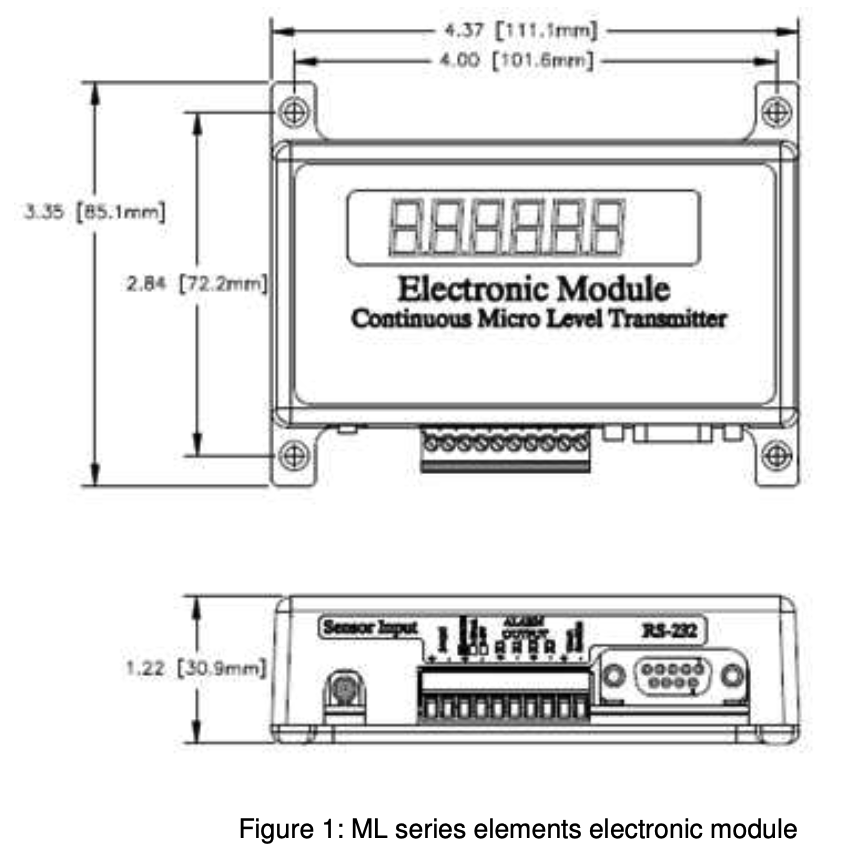

ML-01 Electronics Module (Single channel, two relays)
The 11011239-00 is the ML-01 electronics module used with ML Series ultrasonic sensors, providing 24 VDC input power, a NEMA 1 enclosure, RS-232 communication, and two relays for control/alarms in automation environments. It is one of the three required ML Series building blocks (sensor, cable, electronics unit), and CDI notes it is available to ship.
CBL-Q1A0S2-10: Quick-disconnect cable (10 ft) for fast installation
The CBL-Q1A0S2-10 is a 10-foot quick-disconnect cable that connects the ML Series sensor to the electronics module, using RG174 to an SMB connection for use with the 098-10001 ultrasonic sensor and the 11011239-00 module. CDI also notes this cable is in stock and can ship.
Why ML Series for these applications
The ML Series is designed for high-speed, multipoint, non-contact ultrasonic measurement, delivering ±0.0075 in (±0.19 mm) accuracy with performance that is not affected by liquid color and does not disturb the sample because nothing touches the media. Many operational settings can be programmed through a serial port for application-specific customization.

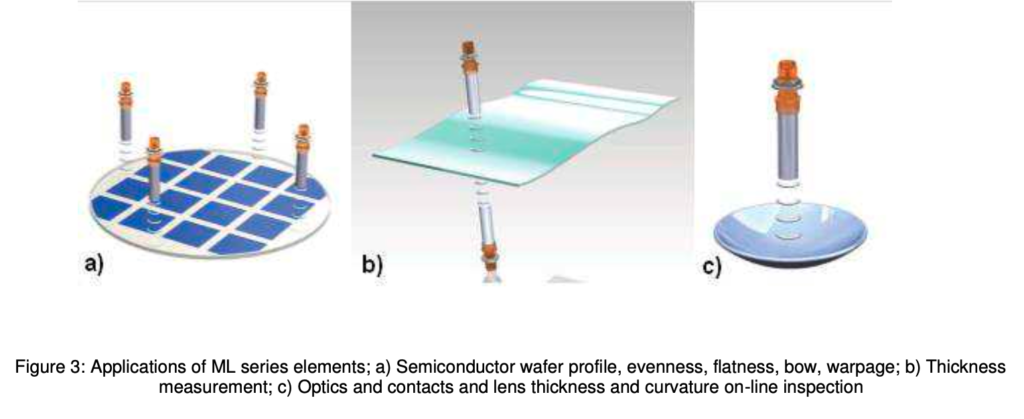

Applications
CDI can target customers using ultrasonic measurement for any of the following applications: adhesive application, auto sampler, bottle filling, dimensional profiling, drum/tote level, fill verification, machine run-out, material thickness, robotic arm position, shapes/profiling, valve/tool position, wafer counting, and wafer profiling.
Get started now
Use CDI’s product pages for 11011239-00 and CBL-Q1A0S2-10 to request a quote or technical support and confirm shipping for your build schedule.
